CADDXFPV

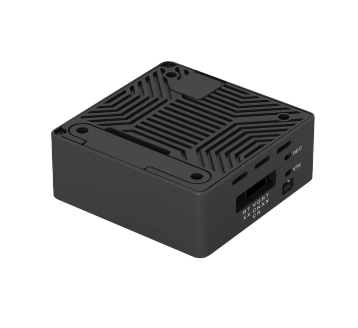

Walksnail Moonlight VTX
Walksnail Moonlight VTX
Regular price
$165.55 USD
Regular price
Sale price
$165.55 USD
Unit price
per
Out of stock
Couldn't load pickup availability
Q: Can moonlight vtx use other WS cameras?
A: No, but other vtx can use moonlight camera
| Specification | |
| Model | Moonlight VTX |
| Firmware name | AvatarMoonlight_Sky_X.X.X |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1 |
| Recording resolution | 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps |
| Max Mbps | 150Mbps |
| Video format | MP4 (H.264) |
| Wide Power Input |
7.4V-25.2V |
| Power consumption | 12V@1.4A, 8V@2.2A |
| Memory card type | U3 MicroSD, Max 256G |
| VTX size | 15.3mm*34.5mm*34.5mm |
| VTX Installation hole distance | 20*20mm/25*25mm (M2) |
| Weight | Gross weight: 38.5g(Antenna not included) |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2 (IPEX) |
